Description
SPECIAL FEATURES
– Automatic Voltage Regulation (AVR)
– Energy efficient, reduce energy and cooling costs
– Delivers clean sinewave output
– 1 slot for optional com card (Network management card, Relay card or Network and Industrial card)
– Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
– Fully integrates with Eaton Intelligent Power Manager software
– 1 USB port + 1 serial port
– Advanced Battery Management (ABM) technology to increase battery lifetime
– Next-generation graphical LCD display
– Hot swappable batteries
– Remote reboot and runtime optimization thanks to 2 manageable outlet groups
– Remote ON/OFF and remote Power OFF connectors

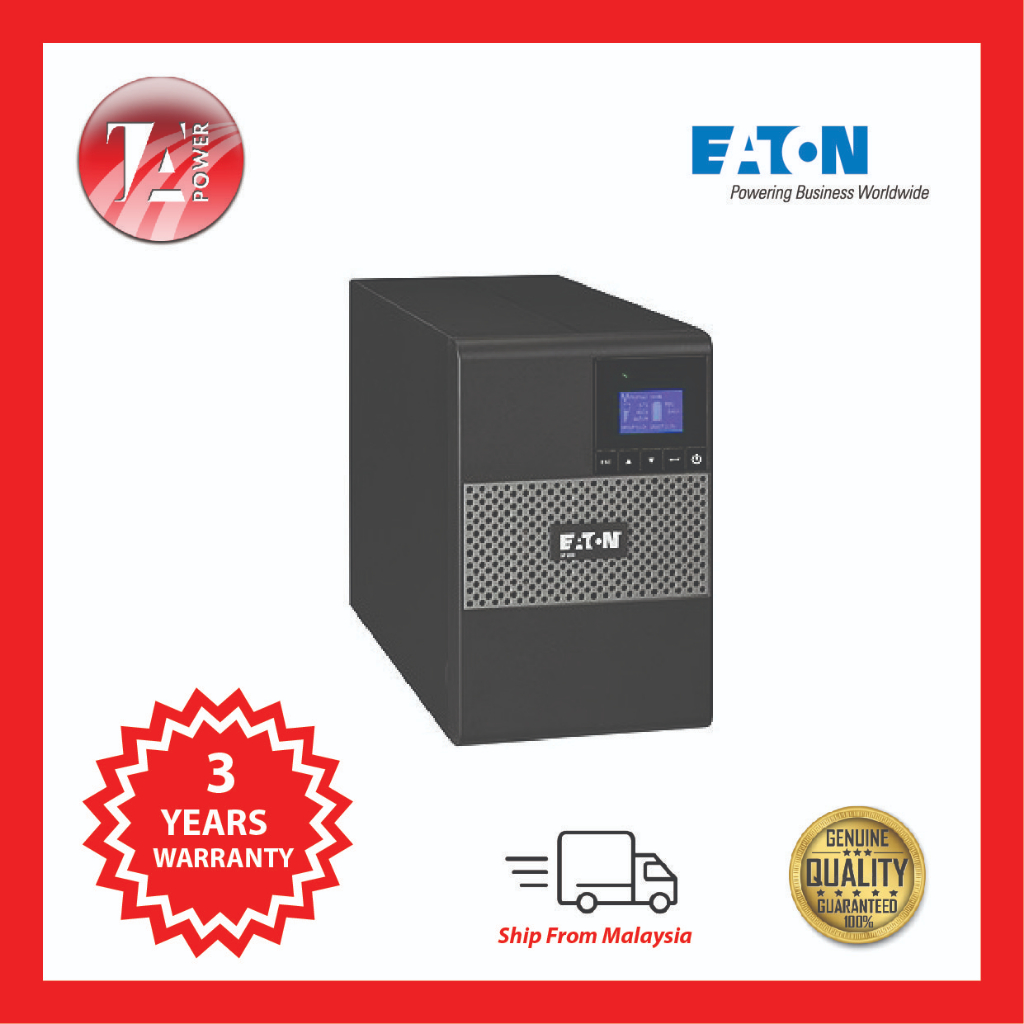

TYPE: UPS
TOPOLOGY: Line-interactive
FORM FACTOR: Tower
CONSTRUCTION TYPE: Free standing model
COLOR: Black/silver
ENCLOSURE: Black/silver
VA RATING: 650 VA
WATTAGE: 420 W
RACK MOUNTING KIT: No
PACKAGE CONTENTS
– USB cable
– Serial cable
– (2) IEC-IEC cables
– Quickstart guide
– Safety instructions
AUTO SHUTDOWN FUNCTION: Yes
PRIMARY FREQUENCY – MAX: 70 Hz
PRIMARY FREQUENCY – MIN: 47 Hz
INPUT CONNECTION: C14
INPUT NOMINAL VOLTAGE: 230V default (200/208/220/230/240V)
NOMINAL FREQUENCY: 50-60 Hz
INPUT FREQUENCY RANGE: 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
RECEPTACLE: (4) C13
NUMBER OF OUTPUTS C13: 4
OUTPUT WAVEFORM: Sine wave
VOLTAGE: 230V
OUTPUT NOMINAL VOLTAGE: 230V default (200/208/220/230/240V)
FEED TYPE: 1
VOLTAGE TYPE: AC
BATTERY MANAGEMENT: ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
BATTERY REPLACEMENT: User replaceable
BATTERY RATING: 12 V / 9 Ah
BATTERY TYPE: Lead-acid maintenance-free (replaceable)
EXTENDED BATTERY CAPABILITY: No
RUNTIME AT HALF LOAD: 9 min
COMMUNICATION
– USB port (HID compliant)
– Serial port (RS232)
– Mini-terminal block for remote On/Off and Remote Power Off
– Dry contacts (2 outputs, optocoupler, RJ)
EXPANSION SLOTS: One slot for optional communication card
ETHERNET INTERFACE: No
INCLUDES NETWORK CARD: No
SOFTWARE COMPATIBILITY: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
USER INTERFACE: Multilingual graphical LCD display
TYPE OF INTERFACE: Other
POTENTIAL FREE SWITCH CONTACT: Yes
ALTITUDE: 2000 m
BTU RATING: Online: 85
NOISE LEVEL: <40 dB at 1 meter
RELATIVE HUMIDITY: 0-90% non-condensing
TEMPERATURE RANGE: 0-90% non-condensing
INPUT VOLTAGE - MAX: 294 V
INPUT VOLTAGE - MIN: 150 V
OUTPUT VOLTAGE - MAX: 240 V
OUTPUT VOLTAGE - MIN: 200 V
SECONDARY FREQUENCY - MAX: 60 Hz
SECONDARY FREQUENCY - MIN: 50 Hz
BATTERY QUANTITY: 1
EFFICIENCY: 96
INPUT VOLTAGE RANGE: 160-294 V (adjustable to 150 V-294 V)
OUTPUT FREQUENCY: 50/60 Hz
OUTPUT POWER FACTOR: 0.65
OUTPUT VOLTAGE RANGE: 230 V (+6%/-10%)
PHASE (INPUT): 1
PHASE (OUTPUT): 1
RUNTIME AT FULL LOAD: 2 min
