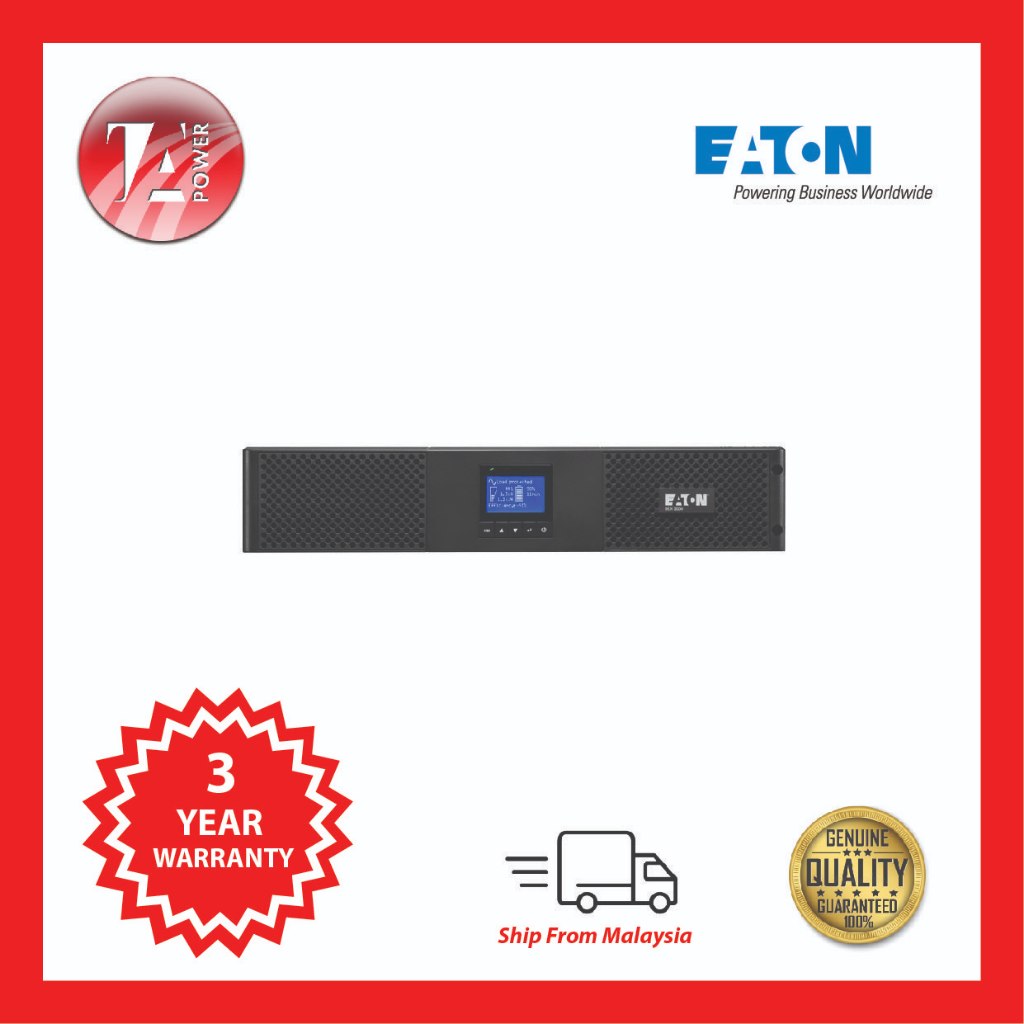

[LIMITED STOCK] Eaton 9SX1000IR 9SX UPS, 1000 VA, 900 W, Input: C14, Outputs: (6) C13, Rack, 2U *3 Years Warranty

Description

*BATTERY*
BATTERY TYPE
Sealed, lead-acid

BATTERY REPLACEMENT
Hot-swappable internal batteries and extended battery modules (EBMs)

BATTERY QUANTITY
3

BATTERY MANAGEMENT
● ABM & Temperature compensated charging method (user selectable)
● Automatic battery test
● Deep discharge protection
● Automatic recognition of external battery units

BATTERY RATING
12 V / 9 Ah

EXTENDED BATTERY CAPABILITY
Yes

*ELECTRICAL OUTPUT*
RECEPTACLE
(6) C13

VOLTAGE
230V

WATTAGE
900 W

OUTPUT POWER FACTOR
0.9

OUTPUT VOLTAGE RANGE
200/208/220/230/240 V +/- 2%

OUTPUT WAVEFORM
Sine wave

OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)

VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) – MAX
3

FEED TYPE
1

TOPOLOGY
Online/Double-conversion

VA RATING
1000 VA

*ELECTRICAL INPUT*
INPUT CONNECTION
C14

INPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240/250V)

NOMINAL FREQUENCY
50/60 Hz

INPUT POWER FACTOR
>.99

INPUT VOLTAGE RANGE
190-276 Vac without derating (up to 120-276 Vac with derating)

INPUT FREQUENCY RANGE
40-70 Hz

*COMMUNICATIONS*
INCLUDES NETWORK CARD
No

COMMUNICATION
● USB port (HID compliant)
● Serial port (RS232)
● Mini-terminal block for remote power off
● Mini-terminal block for output relay
● Dry contacts (2 outputs, 1 input, optocoupler, DB9)

ETHERNET INTERFACE
No

USER INTERFACE
Multilingual graphical LCD display

POTENTIAL FREE SWITCH CONTACT
Yes

EXPANSION SLOTS
One slot for optional communication card

SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector

TYPE OF INTERFACE
Other

*ENVIRONMENTAL*
ALTITUDE
3000 m

NOISE LEVEL
<41 dB at 1 meter TEMPERATURE RANGE 0° to 40°C (32° to 104°F) RELATIVE HUMIDITY 0-96% non-condensing *ADDITIONAL SPECIFICATIONS* CONSTRUCTION TYPE 482.6 mm (19 inch) device PACKAGE CONTENTS ● UPS ● (2) IEC-IEC output cables ● USB cable ● Serial cable ● (2) brackets for 19’ mounting ● (2) Rack-mounting kit ● Safety instructions ● Quickstart guide PHASE (OUTPUT) 1 INTERNAL BYPASS Yes AUTO SHUTDOWN FUNCTION Yes COLOR Black EFFICIENCY 89 RACK MOUNTING KIT Yes PHASE (INPUT) 1 HOT SWAP POWER No
